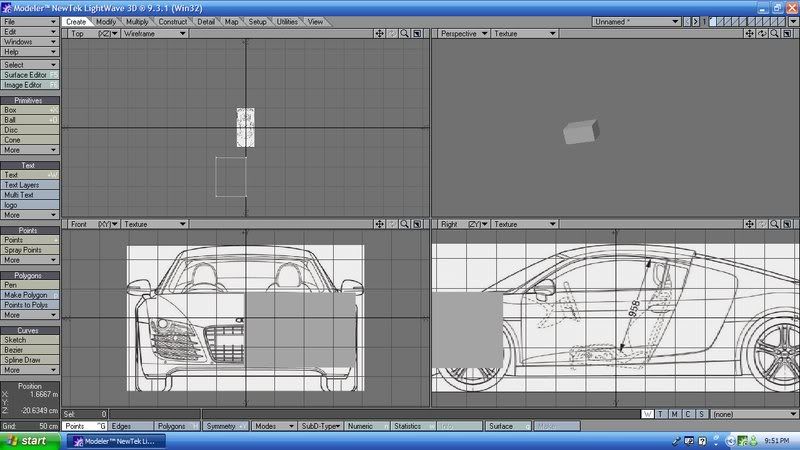

Hello i am having problem with my lightwave educational version. I am trying to model car but my front and side match but my top don’t match for odd reason and i don’t know how to fix it.
lw problems
mutombo
#1
cagey5
#2
You can adjust the size of each one independantly under the same tab that you used to load the images.
fishhead
#3
in your case I would suggest you make a box the size of your car (looks as if your images have the exact size of the borders of the blueprints, i.e. no white areas that extend further than the drawings) say 1 by 2 by 5 in meters - or whatever the exact measures are.
After that in your backdrop panel of the respective viewport check the button “automatic size” - that should do. A good idea might be to save the settings as a preset before you go ahead…
VirtualFM
#4
You also seem to have “Independent zoom” on the Top Left viewport. Try to uncheck that to see if it helps you (Display options/Viewports)
