bump maps going crazy


#1

Hey guys,

I’m having some problems with bump maps in 3ds Max 2013 Design. I was wondering if anyone else has encountered the same problem and (more importantly) has found any solution to said problem.

Basically, whenever I apply a bump map to a material and render it, it gives me this extremely noisy texture, regardless of the file and intensity of the bump map. I tried adjusting the material settings, render settings, nothing works. It happens to every material. Without bump map it’s fine.
I’m attaching a few screenshots to illustrate the problem.
First picture shows the noise in the rendering, second picture shows how the bump map is supposed to look like and last picture shows the file I used for the bump map.

Thanks!


#2

Can you post the same render but with bump maps disabled?
I ask this because it looks like it could be actually your lights not having enough samples?
Edges also seem verry jagged, which suggest you also arent using enough AA samples

Also, how much blur are you using for the bitmap texture?
I have had trouble before with setting this too low for bump maps…


#3

I’m probably wrong but at first it seemed like it was turned way too high.

I guess it could be gamma related as well, I often get very random results when I haven’t gamma corrected input textures. What gamma settings are you using? Both in the 3dsm gamma/lut tab and in the “select bitmap image file” browsing window.

Hopefully someone with more knowledge than me can help you in case it’s not gamma related.


#4

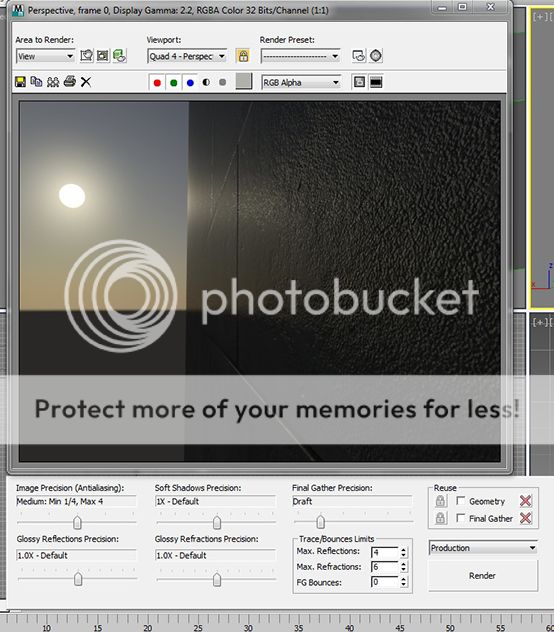

hey thanks for the speedy replies! I attached an image, showing the render with and without bump map. I just noticed this weird circular pattern that was obscured by the bump map. Maybe that is the source of the noise?

Where do you find the parameter for light samples?
Blur is set to 1.0
AA means Anti-aliasing I presume? It’s set at 1/4 Minimum and 1 Maximum.

l3ftnut - where do I find the Gamma settings?

I’m pretty new to textures and rendering, so please excuse me while I try to figure where to find the settings!


#5

You have some heavy moiré going on there (the circular pattern you are talking about). Cant really see where that could be comming from… Are you sure you dont have any overlapping faces etc?

Yes, AA means anti alliasing. 1 max is quite low. Try setting it higher.
But even so, this pattern cerainly isnt ‘normal’.

Maybe playing with your light’s shadow bias can help. That also can help sometimes with weird shadow artifacts.

Im pretty sure it has nothing to do with gamma though.


#6

Chritter is probably right about gamma not being the cause of this. However to answer your question. Go to Rendering-> “Gamma/LUT Setup” and then check the Enable checkbox.

What renderer are you using? Could you post image of your renderer tab in the “Rendering setup” window as well as your indirect illumination tab if you’re using MR?

I tried applying your bump map to objects without any problems. Have you tried using it in a new scene or a new material?


#7

Gamma/LUT correction is enabled.

I’m using mental ray.

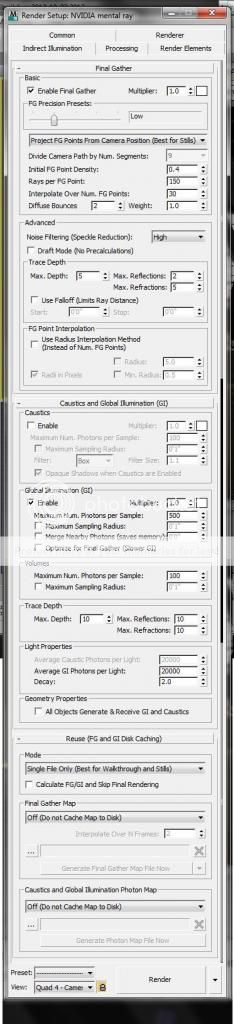

Here are my renderer tab and indirectI tab:

I haven’t tried it on a different scene yet, I will do that when I find some time later today.

CHRiTTeR - I’m pretty sure the geometry is clean. I may be new to rendering, but I’m pretty confident in my modeling skills. Unless, of course, something went wrong during the import/export process. I modeled the scene in Rhino 4, converted it into a mesh and then imported into 3ds max.

where can I find the shadow bias setting?


#8

Well thats exactly the kind of thing that messes up meshes like that (overlapping poly’s etc).
I used to get that allot with imported meshes. It wouldnt hurt to check, just to be sure.

Shadow bias settings are found in the light’s settings. Where exactly depends on what lights you are using.


#9

Alright, I found some time to do a test with a new scene. I used the same day lighting setup on a generic box and it turns out to be just fine. That leads me think that maybe the material of the huge curtain wall window in the background causes the moire, as the light passes through the glass first before it hits the foreground? I don’t know enough about rendering to verify that, so I’m just throwing it out there…


#10

Could be, makes perfect sense…
Its hard to check stuff like that without the scene.


#11

I tried to render the scene without glass, so the light would hit the surface directly. The moire pattern is still present, if not even more distinct.
I tried playing around with the shadow softness by changing its factor and sample rate, didn’t work either.

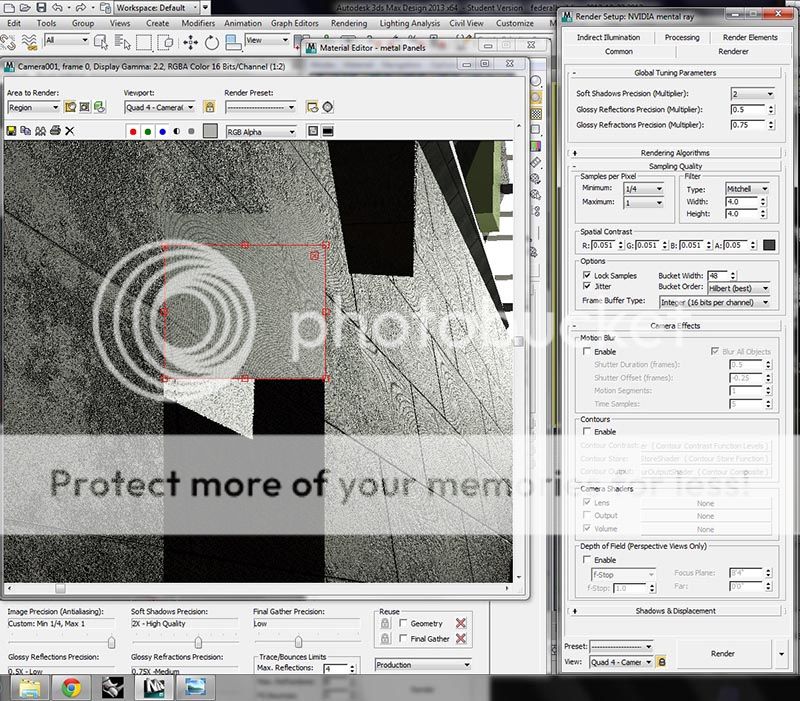

Here’s a render sample without glass:


#12

Shouldn’t AA samples be somewhere at 1 and 4 or 8 rather than 1/4 and 1? Not a mray user here but it just looks too low. The other example looks fine though.


#13

I usually use 1/16 for the sampling settings/

I would also turn speckle reduction down, in my experience turning it up makes things look worse.

Also check your material setting, there’s a sample setting for your reflections there, I’d set it at 16 or 32


#14

To OP: I feel like this needs to be explained, it’s 1 for minimum and 16 for maximum, not 1/16 for minimum samples, this would be way too few samples.

I think what you’re seeing is bad antialiasing (or the lack of), that’s why it worked fine on a fresh scene, it just had better antialiasing sampling settings by default. It’s always recommended to have the first (min) sample at 1 and the second (max) one at 4,8 or 16, depending on how good you want the sampling to be.


#15

Hey thanks for the input.

It seems that a reflection map with real-world-scale turned off caused the biggest problems. Deleting the map got rid of the moire pattern, but I will try out your suggestions, maybe it will eliminate all the noise.


#16

Hi,
The problem sounds familiar. Can you decrease the tiling value. as long as I can remember it caused for the HUGE tiling value (the circular thing). Honestly forgot the solution… try to finding it. Anyone knows please help.

Hope you are not angry just tried as much as I can.

Regards,
Cakewalkcg
