about squash& stretch

there are 2 simple effect but i dont find the way, can anyone tell me?

1) how do this style Squash and stretch effect in Messiah ?



2) how messiah do path follow animation?

thanks for any advice..

Old 03-06-2006, 05:18 PM   #2
JoeCosman
Know-it-All

JoeCosman's Avatar
freelance 3d artist

Join Date: Feb 2002
Posts: 301
Send a message via Yahoo to JoeCosman
two ways

the easiest one is to have a muscle bone and a target to aim at. muscle bones automatically squash and stretch.

the other is to add the x and z channels to this expression: 1/sqrt([Skeleton_Bone_1:zscale])

path follow animation(meaning it lags behind another object at a distance) uses this expression:
if you want to use a frame offset instead of a distance offset, use:
FollowFrame()

-JoeC

Old 03-07-2006, 02:59 AM   #3
gntnyng
Veteran
tom guans
hebei, China

Join Date: Mar 2004
Posts: 49
JoeCosman, thanks for your reply

your tow solution is usually right work for squash&stretch. but I think I don't say it clearly,

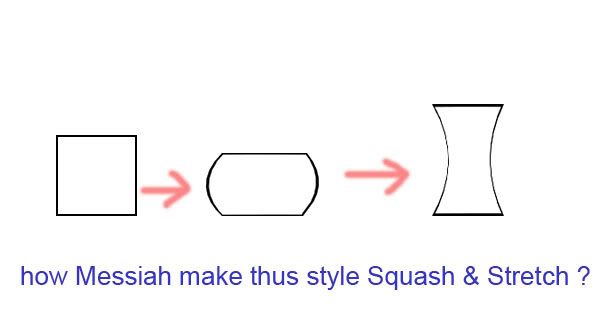

1) I want when Squash it, the box mesial part will bulge; Stretc it, the box mesial part will shink
. like attatched picture showed.

2) eg, I have a motion path curve, I want a box move along this curve , like this style path follow, or other names. and how can i achieve it?

thanks a lot

Old 03-13-2006, 05:18 PM   #4
SilvioToledo
Veteran

SilvioToledo's Avatar
portfolio
Silvio Toledo
Animation - Film - Illustration
Campina Grande, Brazil

Join Date: Apr 2003
Posts: 87
Send a message via MSN to SilvioToledo
On lightwave, just use endomorphs do get this result!
__________________
Silvio Toledo
Brazil

Old 03-14-2006, 11:46 AM   #5
gntnyng
Veteran
tom guans
hebei, China

Join Date: Mar 2004
Posts: 49
ohh... yes, it's the simplest way to get effect, thanks for your hit.

isn't it any direct way to get it?

Old 03-14-2006, 12:51 PM   #6
dobermunk
dobermunk

dobermunk's Avatar
portfolio
david maas
cg direction, concept, models & design
Ludwigsburg / Berlin, Germany

Join Date: Dec 2001
Posts: 1,514
Have you tried the muscle bones or Joe's expression? It doesn't get any easier than that.

Or are you referring to the curves of the objects when squishing?
__________________

drip.de

Old 03-14-2006, 06:18 PM   #7
JoeCosman
Know-it-All

JoeCosman's Avatar
freelance 3d artist

Join Date: Feb 2002
Posts: 301
Send a message via Yahoo to JoeCosman
I think he's referring to curves.

so.... two ways, again.

first is a morph target. model it squashed, or stretched, and the negative value will give the other result.

second is parent a bone to the root, with a metaEffector defining a weight falloff. use the same expression 1/sqrt([Skeleton_Bone_1:zscale]) and add the second bone's X and Y scale.

the metaEffector will define the curve bulge, and the bone will control the amount of scale.


you can also key this by hand, too.
