C4D Vray Transparency issue?

Howdy all,

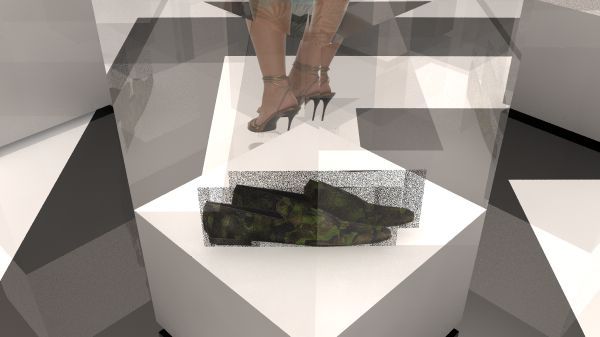

I'm having a problemo with my transparency maps in Vray - not exactly sure what to search for for troubleshooting even - I'm sure it's quite a basic fix...I'm getting a granular black speckle where the transparency should be kicking in?



Thanks!

C

Old 04-26-2013, 08:16 AM   #2
Neil V
Expert
Neil John Vaughan
Creative Director
ENVY
Worcester, United Kingdom

Join Date: Jan 2004
Posts: 752
This is probably down to poor geometry. Have you checked the Normals?

Old 04-26-2013, 10:03 AM   #3
imashination
Expert

imashination's Avatar
portfolio
Matthew ONeill
3D Fluff
United Kingdom

Join Date: May 2002
Posts: 8,957
co-planar geometry, you have 2 glass surfaces in the exact same place. This means youve either accidentally duplicated the glass and left it in place. Or commonly you have place 2 glass objects perfectly against each other. Leave a bit of air between them.
__________________
Matthew O'Neill
www.3dfluff.com

Old 04-26-2013, 11:25 AM   #4
ccclipper
New Member
portfolio
United Kingdom

Join Date: Apr 2013
Posts: 3
Hmmm, scratch that I just rendered sans-glass and same problem. It must be how vray is reading my transparency map, somehow...

Old 04-26-2013, 12:44 PM   #5
brasco
Polygone

brasco's Avatar
portfolio
Jon Bosley
United Kingdom

Join Date: Jun 2003
Posts: 1,731
Imashination already mentioned the problem - co-planar geometry, but it's not on the glass, it looks like it's on your shoe plane. Just make sure there's only one poly where the shoe is mapped, if not we'd have to see the file to help you out.

cheers
brasc
__________________
brasco on vimeo

Old 04-26-2013, 01:33 PM   #6
ccclipper
New Member
portfolio
United Kingdom

Join Date: Apr 2013
Posts: 3
Beautiful guys - yes indeed it was, the source file that was loaded was a 3ds, which I found out was a SketchUp file at one point with a material to the back face, so 2 materials were parsing in the same plane - again, thanks!

Old 04-29-2013, 07:04 AM   #7
lllab
VRAYforC4D

lllab's Avatar
stefan Laub
VRAYforC4D_architect
vrayforc4d.com
Vienna, Austria

Join Date: Sep 2002
Posts: 3,793
ccclipper you are also very welcome to come tot he official vray support forum for things like that, we could have helped you instantthere. account you have already as user there

cheers
Stefan
