Total confusion Maya/Nuke need help on this one!

Hi guys,

I spend some very good time in rendering my 274 frames in Maya and Mental Ray and now when get to work the final render layers and passes in Nuke something odd is happening ( at least for me as I'm just learning all of this on my own). So perhaps I need to mention first that all of my materials are Mia_x_passes and MR Car paint. Then I rendered the following passes:
ColorPass_diffuse
ColorPass_indirect
ColorPass_MasterBeauty
ColorPass_specular
Ten the render layers are:
AO_ground
AO_bike
MotionVector.
Shadows layers for the ground and the bike.
Now I'm not sure what exactly I did wrong, but when I start organizing and composting in Nuke I started getting this odd results out of my color passes.
Ok here are some scree prints of how the situation looks like:

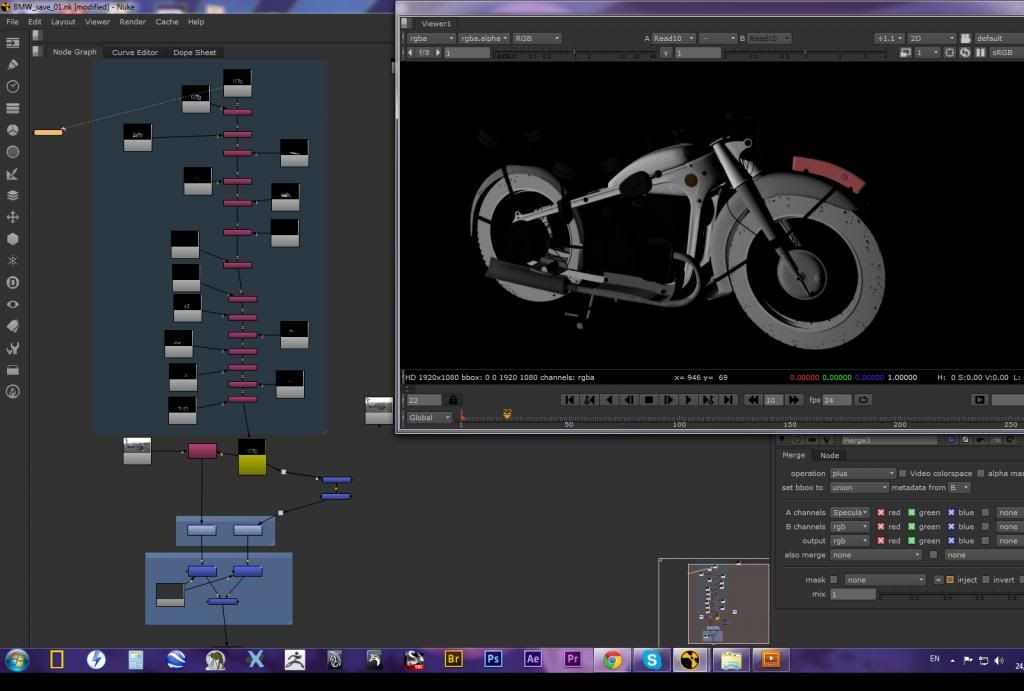

DiffusePass


Indirect

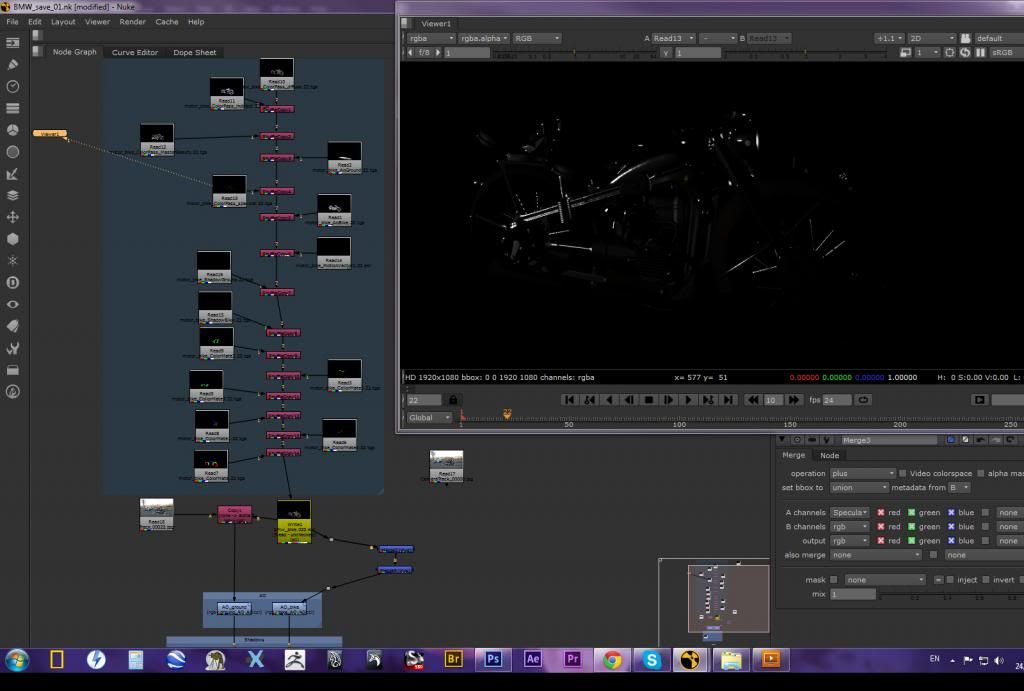

Specular


MasterBeauty


And here how it looks down the line when start composting them:


Guys I'll be very grateful if you can help me with this.... if something is not clear please ask me I will get you some more details as long as we can sort out this.

Thanks.

Old 02-24-2013, 06:37 PM   #2
julsVFX
Scholar

julsVFX's Avatar
portfolio
Julius I.
Double Negative
London, Germany

Join Date: May 2011
Posts: 58
I'm guessing the last picture you posted is supposed to be all the passes combined right? Well, it's not... Comparing your indirect past and your last image they more or less look identical. If I'm guessing correctly from your screenshots you rendered the passes into seperate files, then copied the passes into one stream and write out an .exr with all the passes in it, right?
Well, that way at the end you get an .exr file with all the passes being in seperate channels, but they are however not combined yet. If you want to combine them together to form the beauty you have to add all the passes on top of each other (merge with "plus" mode). You can then make seperate corrections to any pass you like.
Also you seem to be missing a reflection pass (specular just outputs the reflection from actual lights).
Hope that helps!
__________________


Old 02-25-2013, 08:38 AM   #3
Kyron
Cat lover

Kyron's Avatar
portfolio
Christian Kragh
Method Studios
Copenhagen, Denmark

Join Date: Jul 2008
Posts: 326
Maybe you also need a refraction and SSS pass (provided you use any of these). Been a while since I fiddled with MR, so I might be missing something

Old 02-25-2013, 12:38 PM   #4
doffer
Keying everything

doffer's Avatar
portfolio
Christoffer Andersen
Animator
Valence, France

Join Date: Dec 2005
Posts: 914
It looks like you are missing a reflection pass for the engine as well.
But yeah, comp wise you output just looks like your Indirect.
How are you adding them together?
__________________
Website
Steam Punk Challenge

Old 02-25-2013, 06:31 PM   #5
TETRAGRAMATON
New Member
portfolio
Nikolay Mirchev
Professional photographer and 3d artist.
London Professional Photographer
London, United Kingdom

Join Date: Sep 2012
Posts: 15
Hi guys,

As @julsVFX suggested I writhed a EXR file and then started adding the shadows first with constant node the AO and up to this point everything was ok. Then I used merge nodes to start adding the Indirect and secular with plus operation.....


Any way I think I did something very stupid as I forgot to add reflection pass to my Master Beauty layer and now probably I need to render again.
By the way is this the normal way of how the Indirect and Diffuse passes should look?

Also if you have any more suggestions of any other render passes that I my need to add to my render please advice.

Thanks.

Old 02-26-2013, 11:44 PM   #6
julsVFX
Scholar

julsVFX's Avatar
portfolio
Julius I.
Double Negative
London, Germany

Join Date: May 2011
Posts: 58
Just looking at the screenshots I'm pretty sure there is something wrong with your passes... it doesn't make sense that both your diffuse and indirect are for example pretty intense on the tires, yet on your beauty they are black. Did you make sure to only use mia_material_x_passes?

btw also make sure you are outputting the right passes (the passes in mr for maya may be a bit confusing):
Diffuse (=Direct Illumination) + Indirect + Reflection + Specular + Refraction (provided you are having something refractive)
Don't use those blabla "Without Shadows" passes.
__________________


Last edited by julsVFX : 02-26-2013 at 11:49 PM.

Old 02-28-2013, 09:16 AM   #7
TETRAGRAMATON
New Member
portfolio
Nikolay Mirchev
Professional photographer and 3d artist.
London Professional Photographer
London, United Kingdom

Join Date: Sep 2012
Posts: 15
Yeh I totally messed it up. I need sort out properly my render passes for the beauty layer and re render all over. The tires are black but there is plenty of details there like dirt stones and so on you can check bigger images here
http://mirchevphotography.com/?page_id=832

And yes I did use Mia x passes material together with Mib color mix
And this is the shading network of the tires


And for the rest is pretty much the same.

Old 03-15-2013, 04:32 AM   #8
asinn
PRO

asinn's Avatar
portfolio
Andry Wijaya
Indonesia

Join Date: Jun 2008
Posts: 137
Send a message via Yahoo to asinn
i think you need more passes
(raw diffuse x constant color) + (raw indirect x constant color) + sss + spec + refraction + reflection = master beauty

at your image, there is no texture, reflection and refraction

your indirect and diffuse is raw (i think), so you need to multiply with texture first before

Last edited by asinn : 03-15-2013 at 04:35 AM.
